Understanding ODM 3/8 USS Flat Washer Dimensions

Flat washers are versatile, simple devices that play a critical role in many assemblies and constructions. Specifically, the ODM (Original Design Manufacturer) 3/8 USS (United States Standard) flat washer is widely used in various industrial and mechanical applications. Understanding the dimensions and specifications of these washers is essential for engineers, manufacturers, and DIY enthusiasts alike. In this article, we will explore the dimensions, uses, and other relevant information associated with ODM 3/8 USS flat washers.

Dimensions of ODM 3/8 USS Flat Washers

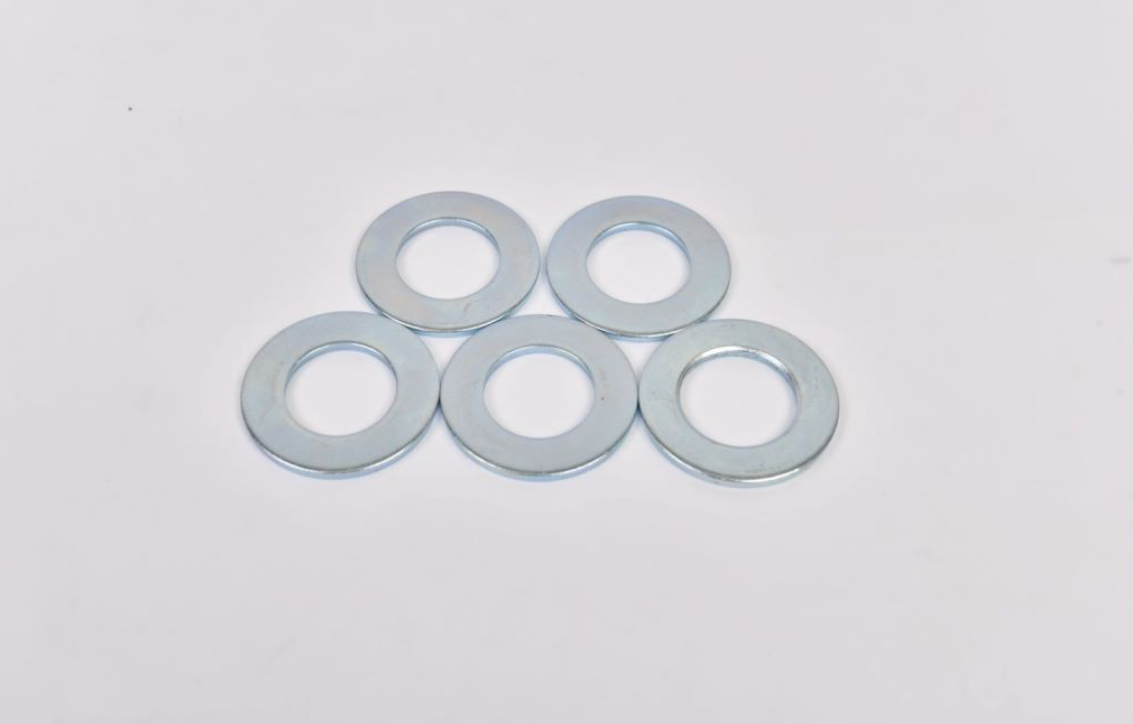

The ODM 3/8 USS flat washer is designed to fit bolts or screws that are 3/8 inches in diameter. The key dimensions that define these washers include their inner diameter (ID), outer diameter (OD), and thickness.

1. Inner Diameter (ID) The inner diameter of an ODM 3/8 USS flat washer is crucial for ensuring that it fits snugly over the bolt or screw. For a 3/8-inch bolt, the inner diameter typically measures slightly more than 3/8 inches (approximately 0.394 inches), allowing it to slide easily onto the bolt without too much play.

2. Outer Diameter (OD) The outer diameter provides stability and distributes the load over a larger area to prevent the surrounding material from deforming. For a 3/8 USS flat washer, the outer diameter is usually around 0.875 inches (7/8 inches). This larger surface area helps in achieving a better load distribution.

3. Thickness The thickness of a flat washer significantly influences its load-bearing capacity. An ODM 3/8 USS flat washer generally has a thickness of approximately 0.06 inches. This dimension may vary slightly depending on the manufacturer, but it is standardized to ensure compatibility across different applications.

Flat washers, including the ODM 3/8 USS variant, are made from various materials depending on the specific requirements of the application. Common materials include

- Steel Often coated with zinc or other finishes for corrosion resistance, steel washers are used in many outdoor and industrial applications. - Stainless Steel Provides excellent resistance to corrosion and is ideal for applications exposed to harsh environments. - Plastic Lightweight and non-corrosive, these washers are used in electrical and sensitive applications where metal may cause interference.

Applications

The ODM 3/8 USS flat washer is versatile across numerous applications, particularly in the construction and automotive industries. Its primary functions include

- Load Distribution By spreading the load of a nut or bolt over a larger area, flat washers help prevent damage to the material being fastened. - Vibration Resistance In machinery and vehicles, flat washers can help reduce the likelihood of loosening due to vibrations, which can lead to failures. - Surface Protection Washers provide a barrier between the fastener and the material, preventing the bolt or nut from digging into the surface.

Conclusion

In summary, the ODM 3/8 USS flat washer is a crucial component in various mechanical and structural applications. Its dimensions, including an inner diameter of around 0.394 inches, an outer diameter of about 0.875 inches, and a thickness of approximately 0.06 inches, are essential for ensuring functionality and stability. With applications ranging from automotive to construction, understanding the specifications and proper use of these washers is vital for achieving secure and reliable assemblies. Whether you are a professional engineer or a DIY enthusiast, recognizing the importance of flat washers can lead to more effective and durable construction projects.
