Hex Head Self-Drilling Screw Size Chart - Comprehensive Guide for Sizing and Selection

Understanding Hex Head Self-Drilling Screw Size Chart

When it comes to construction, furniture assembly, and various DIY projects, selecting the appropriate fasteners is crucial. Among the options available, hex head self-drilling screws have gained popularity due to their unique design and versatility. This article explores the importance of the size chart for these screws, particularly for factory settings and industrial applications.

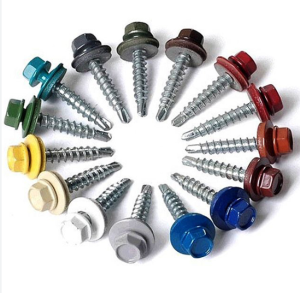

Hex head self-drilling screws are characterized by their hexagonal heads, which allow for easy installation using a wrench or power tool. The self-drilling feature eliminates the need for pre-drilling holes, making them ideal for fastening materials like metal and wood quickly and efficiently. However, to achieve the best results, it's essential to choose the correct size of screw.

A size chart for hex head self-drilling screws typically includes various dimensions, such as the diameter, length, thread count, and the type of material used. Here's a brief breakdown of these crucial factors

1. Diameter The diameter of a screw influences its holding power. Common sizes range from 8 to 14 for hex head self-drilling screws. Smaller screws (like 8) are suitable for lighter materials, while larger screws (like 14) are better for heavy-duty applications.

2. Length Length is another vital aspect that must align with the materials being fastened. A screw that is too short may not provide enough grip, while an overly long screw may penetrate unwanted areas, risking damage. The size chart helps to match the screw length with the thickness of the materials involved.

3. Thread Count The thread count indicates how many threads are present per inch, which affects the screw's gripping ability. In general, a higher thread count offers a better hold, especially in soft materials like wood. Conversely, for harder materials like metal, a lower thread count can facilitate easier installation.

4. Material The material of the screw impacts its durability and application. Common materials include stainless steel, carbon steel, and zinc-plated options, each suited for specific environments and load requirements. A size chart will often indicate the best material to use based on environmental conditions like moisture exposure or corrosion risk.

By consulting a comprehensive size chart, factory workers and DIY enthusiasts can ensure they select the right hex head self-drilling screws for their projects. This not only simplifies the installation process but also contributes to the overall quality and longevity of the assembly.

In conclusion, the significance of the hex head self-drilling screw size chart cannot be overstated. Whether you're working on a construction site, manufacturing line, or a home improvement project, understanding the various specifications will empower you to make informed decisions. By doing so, you can achieve a secure and successful fastening solution tailored to your specific needs.
